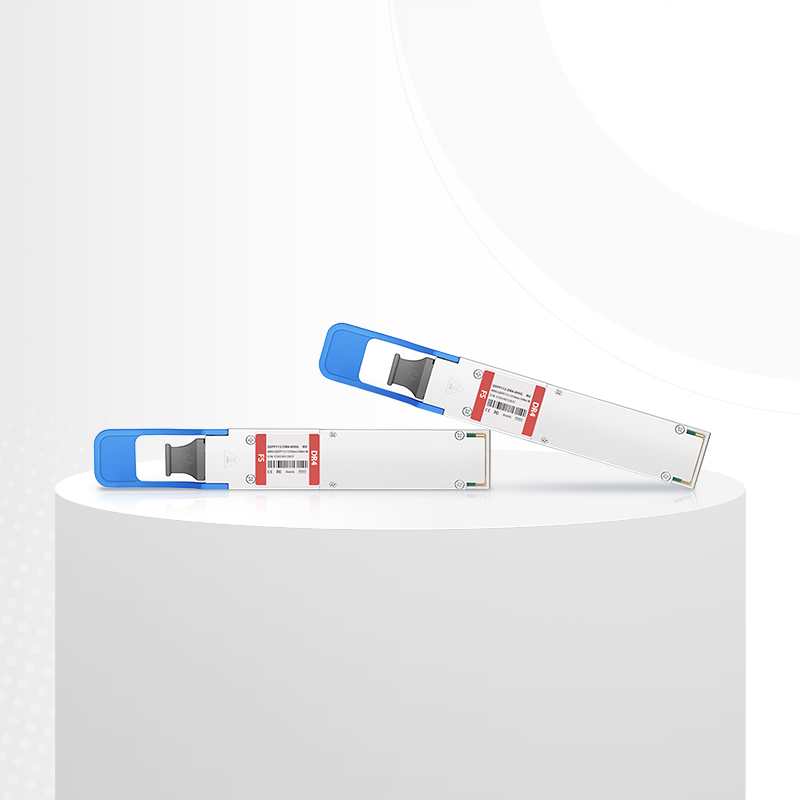

This picture is about QSFP112-DR4-400G InfiniBand Optical Transceiver Module Overall Introduction | FS.





 01:16

0 / 0

NVIDIA/Mellanox MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 PAM4 1310nm 500m DOM MPO-12/APC SMF InfiniBand NDR Optical Transceiver Module for ConnectX-7 HCA

P/N:QSFP112-DR4-400G

SKU:241111

C$ 1,225.00

15 Solds

2 Reviews

4 Questions



Deliver to Canada

Free Shipping via UPS Express Saver



Product Custom Request



5-Year Warranty

30-Day Returns

30-Day Exchange

Product Highlights

Qualified for InfiniBand NDR End-to-End Systems

Built-in Marvell DSP Chip, Max. power consumption 10W

Low Bit Error Rate (BER) with FS InfiniBand NDR Systems

Support 800G-to-Two 400G Links for Switch-to-Adapter

Support Configuration at 1/2 speed for 200G (2x 100G)

See more 

0 / 0

Specifications

Connectivity Solutions

Features

Videos

Q&A

Reviews

Resources



Global Services Localized for You

7 Local Warehouses Enabling 90% Same-Day Shipping
8 Local Presences Supporting 450K+ Enterprise Clients in Over 200 Countries
Expert Customer Service On Call, 5x24 Phone Support
Local Engineers Provide Professional FS Install™ Services

FS Install™

End-to-End Product Customization

600+ R&D Experts in Software and Hardware Domains
Hardware Adaptation to Tailor Products and Ensure Seamless Compatibility
Custom Protocol Development Aligned with Unique Business Needs
Management Platform Integration for Device Onboarding and Feature Development

FS Product Custom

Always-On Tech Support

900+ Technical Support and Service Professionals
0.5-Day Average Solution Response Time
On-Site, Remote, Demo, and Online Support Options
Personalized Technical Services Tailored to Each Project

Tech Support

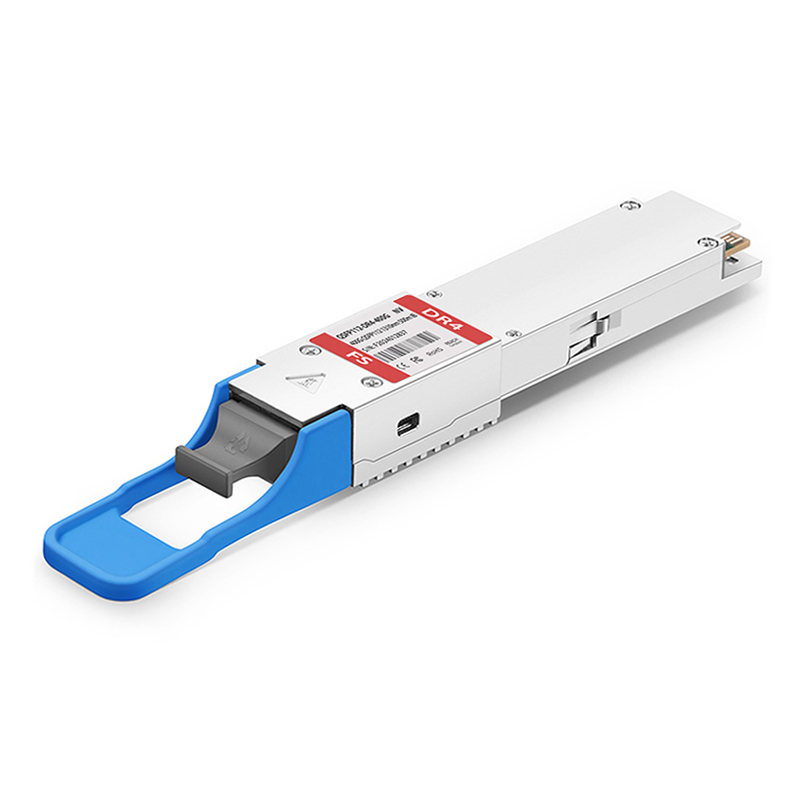

NVIDIA/Mellanox MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 PAM4 InfiniBand NDR Optical Transceiver Module (SMF, 1310nm, 500m, MPO-12/APC, DOM)

The NVIDIA/Mellanox MMS1X00-NS400 Compatible QSFP112 InfiniBand NDR Optical Transceiver is an InfiniBand 400Gb/s Single-port QSFP112, DR4 single-mode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Reach 4-channel (DR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single mode fibers. Used in ConnectX-7/QSFP112 adapters linked to Twin-port transceivers in 2x400G IB switches. When connected to a 1:2 splitter fiber cable, there are only 2 channels on the split end and only 2-channels in the 400G transceiver will be activated, automatically producing 200G speeds and reducing power.
It is an ideal solution for supercomputing and is suitable for InfiniBand NDR end-to-end systems, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnection.

Specifications

NVIDIA/Mellanox InfiniBand Compatible

MMS1X00-NS400

Vendor Name

Form Factor

QSFP112

Max Data Rate

425Gbps (4x106.25Gb/s)

Wavelength

1310nm

Max Cable Distance

500m

Connector

MPO-12/APC

Media

SMF

Transmitter Type

EML

Receiver Type

TX Power

-2.9~4.0dBm

Minimum Receiver Power

-5.9dBm

Power Budget

3dB

Receiver Overload

4.0dBm

Max Power Consumption

10W

Extinction Ratio

>3.5dB

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Modulation (Electrical)

4x100G-PAM4

Modulation (Optical)

4x100G-PAM4

CDR (Clock and Data Recovery)

TX and RX

Inbuilt FEC

Core Size

G.652/9um

Packaging Technology

COB

Protocols

QSFP112 MSA, CMIS 5.0, IEEE Std 802.3ck

Warranty

5 Years

Driving Next-Gen High-Speed Networks

1.6T/800G/400G/200G Transceivers and Cables Insights 

View our full range of high-speed optical solutions designed for Cloud, HPC, storage and AI, data center.

Driving Next-Gen High-Speed Networks

1.6T/800G/400G/200G Transceivers and Cables Insights Learn more

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Connectivity Solutions





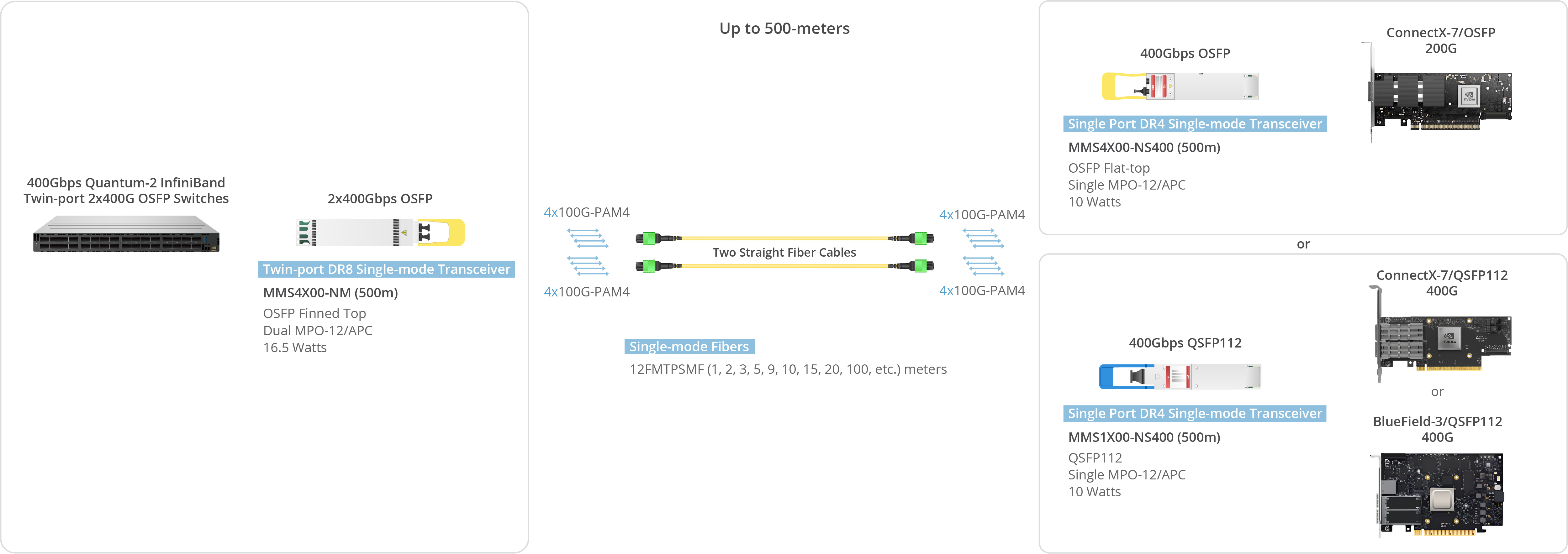

800G to 2x 400G Links to ConnectX-7 and/or BlueField-3 DPUs

800G to 4x 200G Links to ConnectX-7 and/or BlueField-3 DPUs

Features





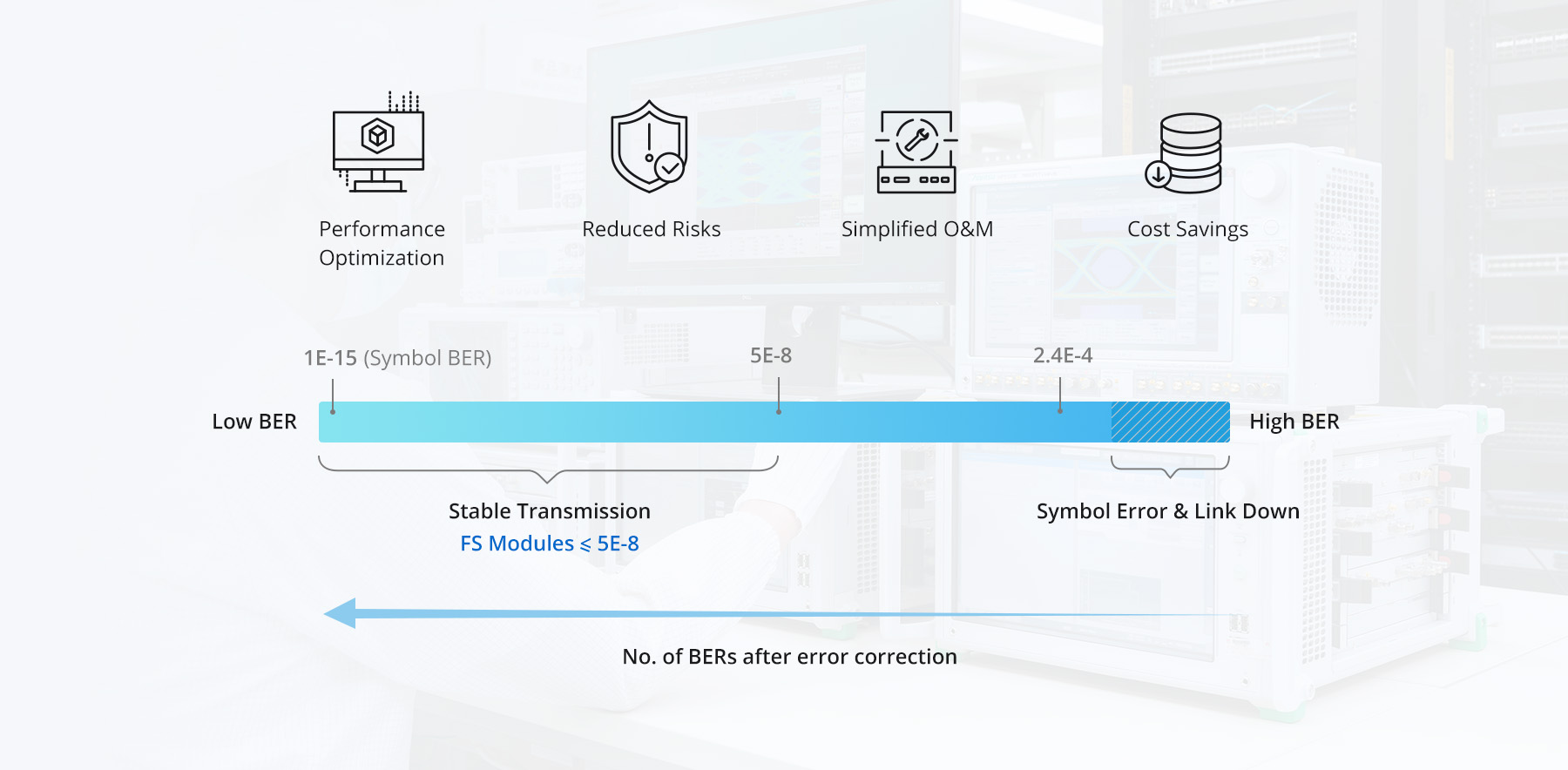

Low BER on par with NVIDIA Originals

During LL FEC (272,257) testing, FS transceivers achieve Pre-FEC BER of -8~-10, and near-zero post-correction, reducing operations and maintenance (O&M) complexity and cost.

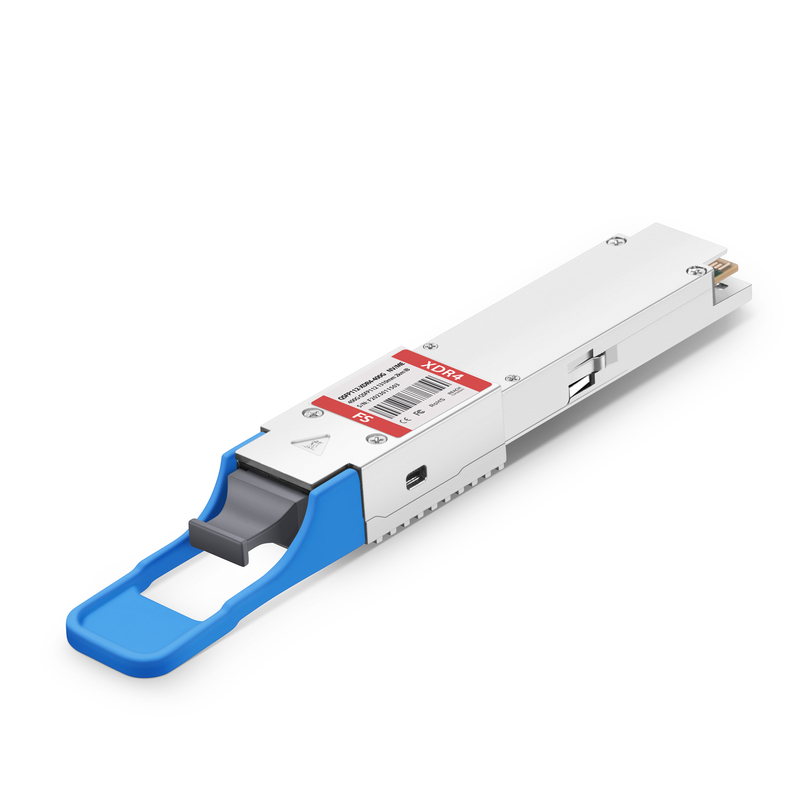

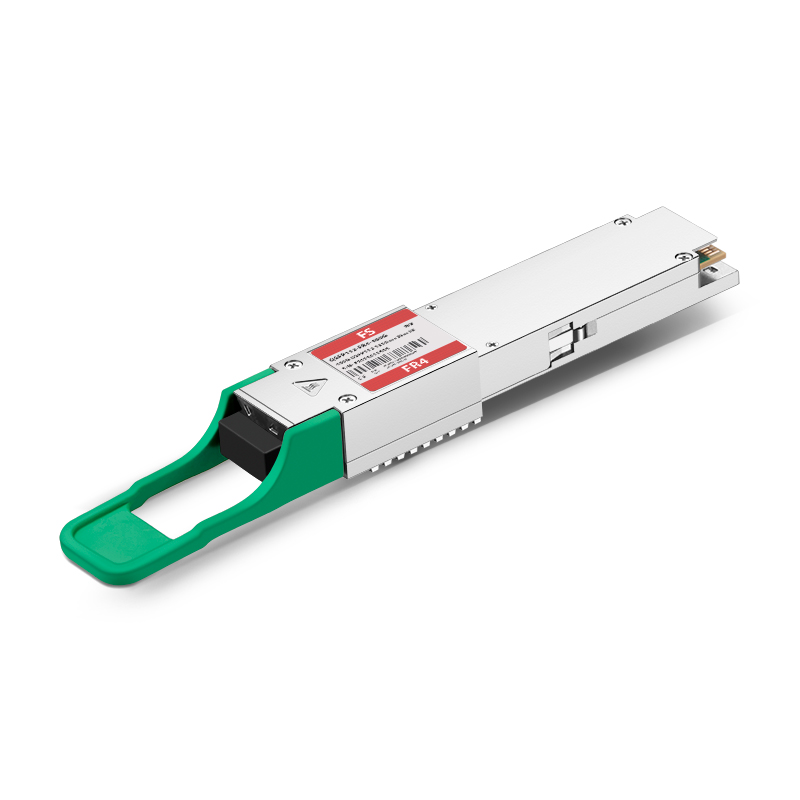

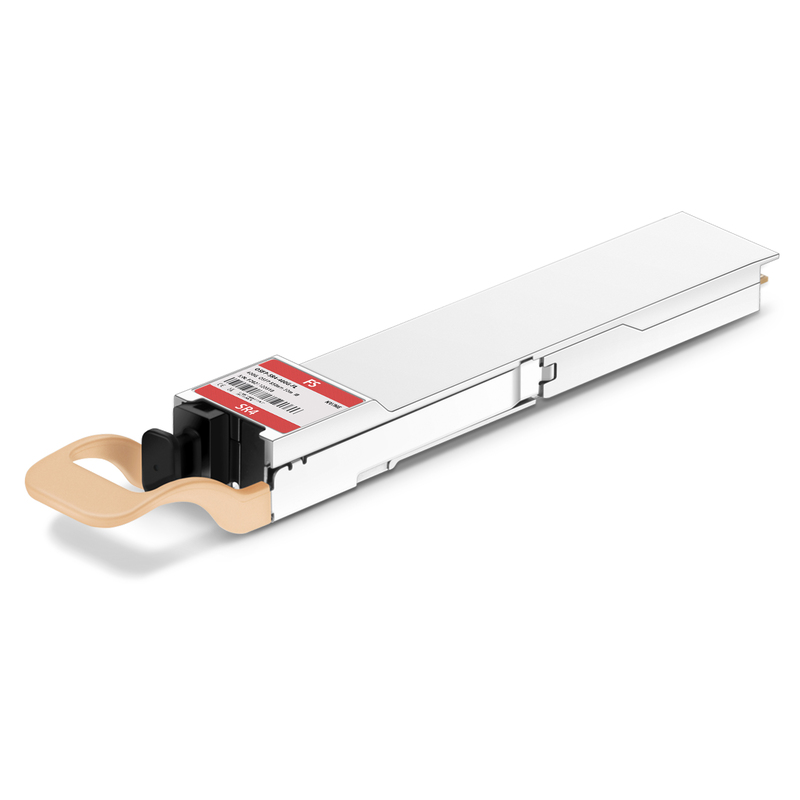

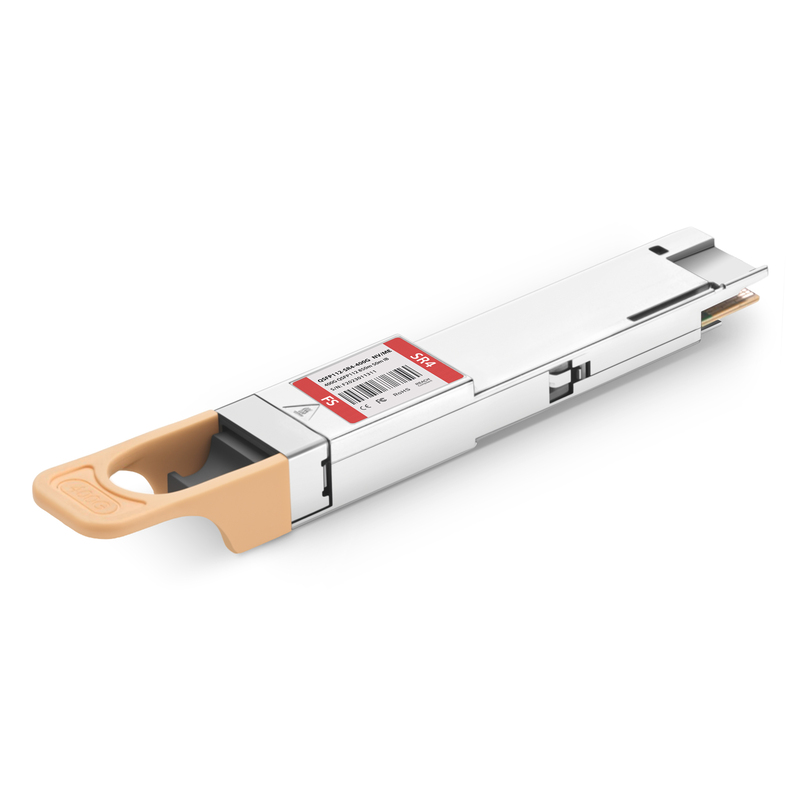

	QSFP112-SR4-400G	QSFP112-DR4-400G	QSFP112-FR4-400G	QSFP112-XDR4-400G

NVIDIA Part Number	MMA1Z00-NS400	—	—	—
Data Rate	400Gb/s SR4	400Gb/s DR4	400Gb/s FR4	400Gb/s XDR4
Form Factor	QSFP112	QSFP112	QSFP112	QSFP112
Wavelength	850nm Multimode	1310nm Single mode	1310nm Single mode	1310nm Single mode
Optical Connector	MPO-12/APC	MPO-12/APC	Duplex LC UPC	MPO-12/APC
Configuration	4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel	4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel	4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel	4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel
Reach	30m@OM3 50m@OM4	500m	2km	2km
Max Power Consumption	9W	10W	10W	10W
Matching Cables	Multimode Straight Cables 12FMTPOM4 Multimode Conversion Cables 8FMTPOM4	Single-mode Fiber Cables 12FMTPSMF Single-mode Conversion Cables 8FMTPSMF	Dual 2-fiber LC Single-mode Cables SMLCDX	Single-mode Fiber Cables 12FMTPSMF
Matching Transceivers	MMA4Z00-NS (Finned top)	MMS4X00-NM (Finned top)	MMS4X50-NM (Finned top)	OSFP800-XDR8-B2
Application	800G-to-two 400G Links 800G-to-four 200G Links	800G-to-two 400G Links 800G-to-four 200G Links	800G-to-two 400G Links	800G-to-two 400G Links

NVIDIA Part Number

MMA1Z00-NS400

—

Data Rate

400Gb/s SR4

400Gb/s DR4

400Gb/s FR4

400Gb/s XDR4

Form Factor

QSFP112

Wavelength

850nm
Multimode

1310nm
Single mode

Optical Connector

MPO-12/APC

Duplex LC UPC

MPO-12/APC

Configuration

4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

Reach

30m@OM3
50m@OM4

500m

2km

Max Power Consumption

10W

Matching Cables

Multimode Straight Cables 12FMTPOM4
Multimode Conversion Cables 8FMTPOM4

Single-mode Fiber Cables 12FMTPSMF
Single-mode Conversion Cables 8FMTPSMF

Dual 2-fiber LC Single-mode Cables
SMLCDX

Single-mode Fiber Cables
12FMTPSMF

Matching Transceivers

MMA4Z00-NS (Finned top)

MMS4X00-NM (Finned top)

MMS4X50-NM (Finned top)

OSFP800-XDR8-B2

Application

800G-to-two 400G Links
800G-to-four 200G Links

800G-to-two 400G Links





Videos





 01:16

QSFP112-DR4-400G InfiniBand Optical Transceiver Module Overall Introduction | FS

 01:16

QSFP112-DR4-400G InfiniBand Optical Transceiver Module Overall Introduction | FS

Questions & Answers

All (4)Compatibility (2)Product Comparison (1)

Can this module be used as 200G? Is there any configuration required?

by G***r on 11/28/2024

QSFP112-DR4-400G can be reduced to 200G without any additional configuration.

by FS.com on 11/30/2024

 Helpful 0

Is it possible to use the this module on an OSFP port?

by B***y on 11/04/2024

No, it is not possible. The QSFP112-DR4-400G module and the OSFP port have different form factors and electrical interfaces, so they cannot be used directly.

by FS.com on 11/05/2024

 Helpful 0

What is the difference between Q112-DR4-400G and QDD-DR4-400G/OSFP-DR4-400G?

by J***n on 11/04/2024

The biggest difference is in the packing. QSFP112 and OSFP use 4x100G/lane, whereas QSFP-DD uses 8x50G/lane. Additionally, compared to QSFP-DD and QSFP112, the OSFP form factor is bigger.

by FS.com on 12/05/2024

 Helpful 0

Is the QSFP112 port backward compatible?

by R***d on 11/03/2024

Traditional QSFP 40G (4x10G), 100G (4x25G), and 200G (4x56G-PAM4) modules and cables can be backward compatible with the QSFP112 port.

by FS.com on 11/05/2024

 Helpful 0
